NWSL HO NEW CAN MOTOR 2032D-9 REPLACES SAGAMI 20325-9
Price:
$32.95
SKU:
2032D-9
Brand:
Weight:
0.20 LBS
Availability:
Ships Within 24 Hours
Shipping:
Calculated at checkout
Current Stock:
Out of stock
Sorry but this item is currently unavailable.
Please check back at a later stage.
Product Description

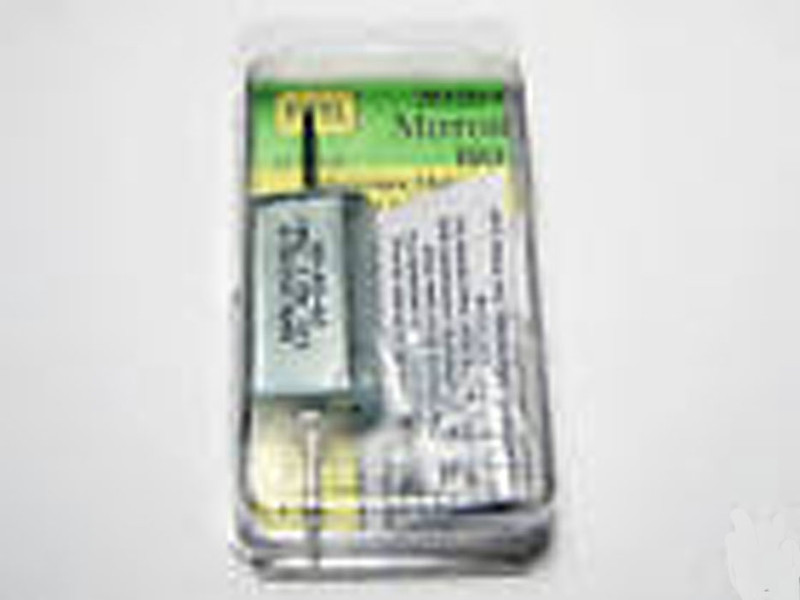

NWSL HO/On3 #2032D-9
This is a new North West Short Lines new high torque Flatcan motor which replaces the no longer available Sagami can motor #20325-9
20x32 Motor, Flatcan, Specifications:
12VDC
1.75 Stall amps
9,500 RPM
Torque: 255 g/cm (3.54 oz/in)
Watts: 3.29
Body size metric: 15.32mm (flat) x 20.4mm (round) x 32.1mm long
Body size inches: .603" (flat) x .803" (round) x 1.26" long
Rotation: Counter Clockwise
Shaft diameter: 2.0mm
Shaft length: 15.6mm/0.614" each end (excluding shaft bearing)
Starting Voltage: 1.5VDC
12VDC
1.75 Stall amps
9,500 RPM
Torque: 255 g/cm (3.54 oz/in)
Watts: 3.29
Body size metric: 15.32mm (flat) x 20.4mm (round) x 32.1mm long
Body size inches: .603" (flat) x .803" (round) x 1.26" long
Rotation: Counter Clockwise
Shaft diameter: 2.0mm
Shaft length: 15.6mm/0.614" each end (excluding shaft bearing)
Starting Voltage: 1.5VDC
